Linear guide system of CHTK® R decreases circuit board machine’s bulk

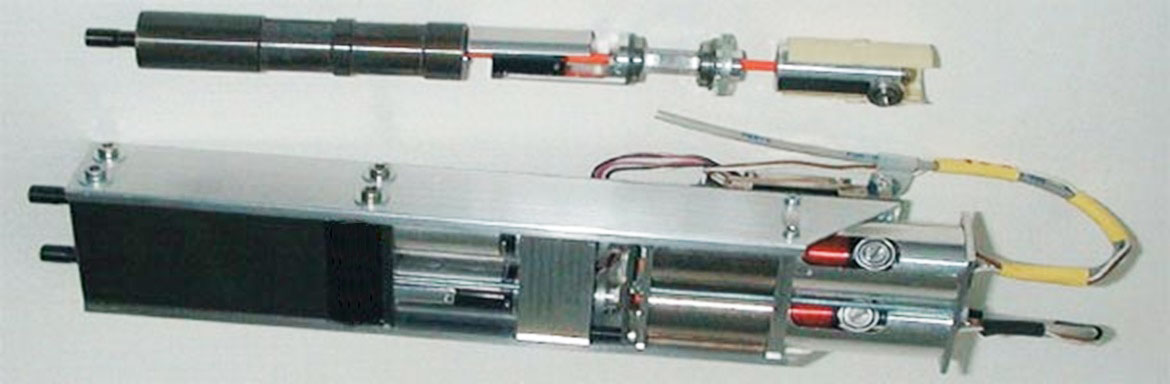

- This novel pick-and-place insertion head for a circuit board machine uses CHTK® R liners. Besides their linear guide systems which provide precision guiding, the open design of these liners saves on installation space.

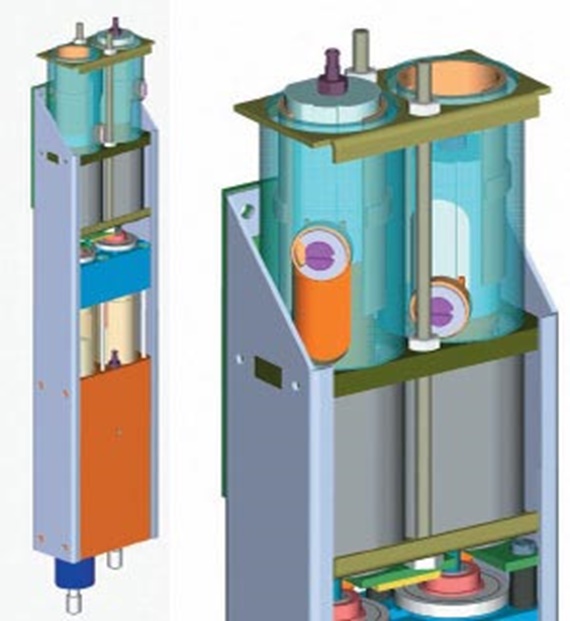

- Conventional designs that did not use these liners had a separate guide for the linear motor, measuring system and anti-twist protection. With the new linear guide system of the CHTK® R liners, the new circuit board machine takes up 20% less space than its previous counterparts. In addition, the weight of the machine, thanks to the CHTK®R liners, is also substantially reduced.
