Linear guides for handling equipment

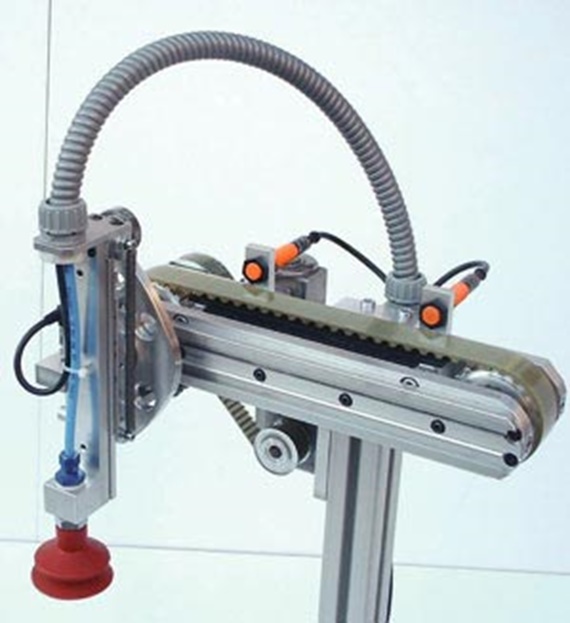

The demand to produce smaller and smaller products requires highly accurate handling devices that can be quickly retrofitted. These devices should also be space efficient. One such device suitable for various industrial sectors uses CHTK® linear guides, which are lubrication-free and so save time spent on maintenance work.
■ CHTK® R linear bearings, CHTK® W modular guides, CHTK® T profile rail guides, and CHTK® N low profile linear guides from CHTK® are all used in this handling device.
■ In contrast to recirculating linear ball bearing systems, the CHTK® linear guides move on high performance plastic gliding elements made from the CHTK® plastic CHTK® J, which is low wear and low friction.
■ CHTK® linear bearing systems are designed for dry operation, so dirt accumulation is not an issue. In contrast with recirculating ball bearing systems, CHTK® guides do not require a minimum stroke or travel length.
■ This handling device is suitable for workpieces up to maximum 11 lbs and runs in cycles of less than 0.5 seconds.
