A CNC-controlled three-axis machine:

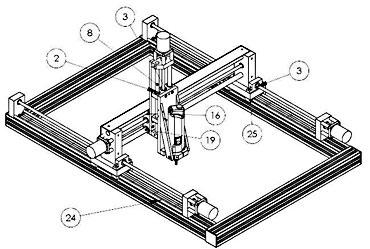

Drawing of the engraving machine
- 2： CHTK® R linear bearing

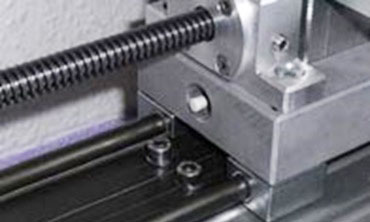

- 3： CHTK® trapezoidal leadscrew nut
- 8： Guide rod
- 16： CHTK® R linear bearing
- 19： Guide rod
- 24： Rail
- 25： CHTK® W modular linear guide

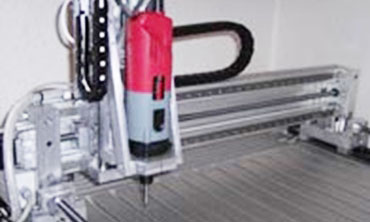

CNC engraving machine
CNC engraving machine
A CNC-controlled three-axis machine:
Drawing of the engraving machine
2： CHTK® R linear bearing
3： CHTK® trapezoidal leadscrew nut
8： Guide rod
...
CNC engraving machine
General advantages of CHTK® products:
CNC-engraving machine
- Lightweight
- Corrosion resistant
- Not affected by dirt
- Maintenance- and lubrication-free
-
X axisCHTK® T miniature profile rail guide. -

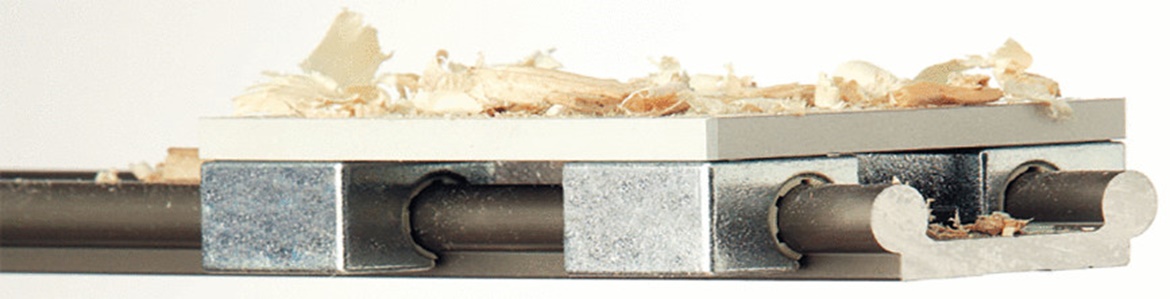

Y axisCHTK® W modular linear guide. -

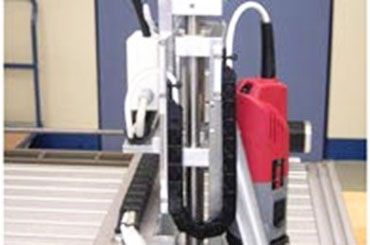

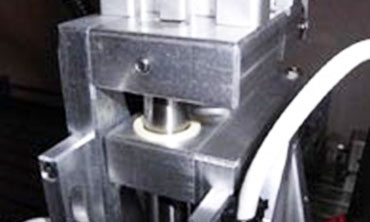

Z axisCHTK® R linear bearings.
Main criteria for selection:
■ Compact
■ Supported rail system
Main criteria for selection:
■ Supported rail system
■ Low cost
■ Very compact, low profile design
■ Good absorption of loads from all directions
Main criteria for selection:
■ Lightweight
■ Low cost

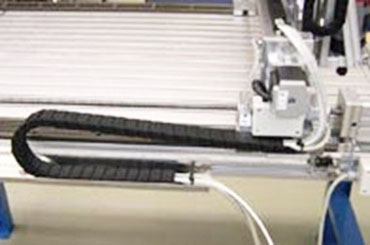

Cable carriers - selection criteria
The cable carriers used were decided based on the available installation space. As a result, the length, width, height and bending radius of the cable carrier played an important role.
An enclosed system was required to protect the cable from dirt and damage. A Zipper-style energy chain from CHTK® was chosen to facilitate retrofitting in future.
