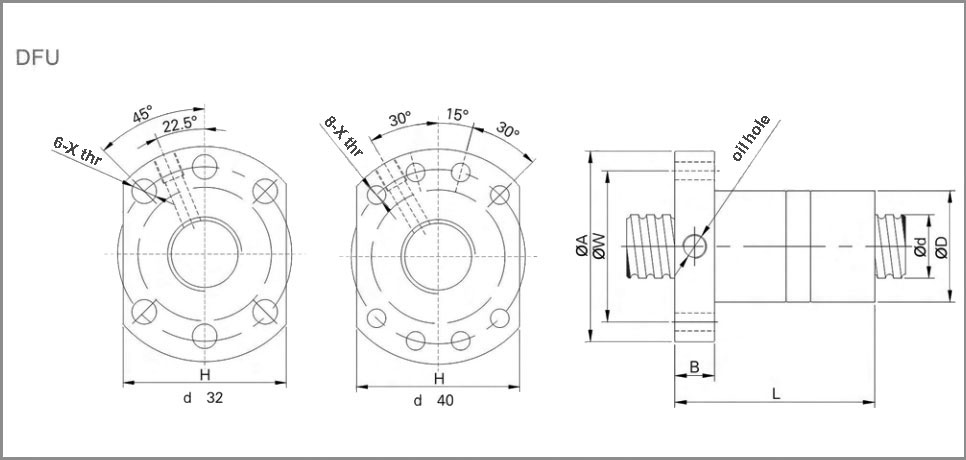

DFU Series
Features:

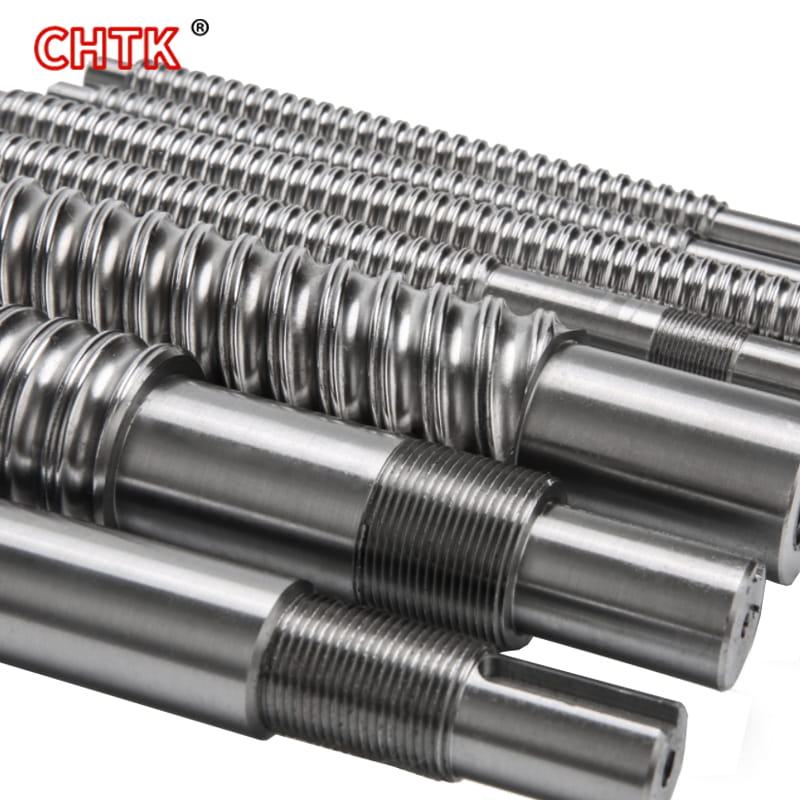

1. Cold rolled ball screw.
2. CF53 STEEL material.
3. High-speed operation.
4. C5 C7 precision.
5. No gap and preloading.
6. Quality as good as Original Taiwan TBI brand, high precision, long life use.
7. Manufacturer with large stock & short delivery.
8. CHTK provide full ball screw sizes and related accessories.
9. The max length we do is 6000mm, but we suggest customer choose 3000mm, it's easy for packing and safe for transport.

Application:
Engraving machines, High speed CNC machinery, Auto-machinery, Semi-Conductor equipment, Machine tools, Industrial Machinery, Printing machine, Paper-processing machine, Transport machinery, Robot, etc.
Share This Product:

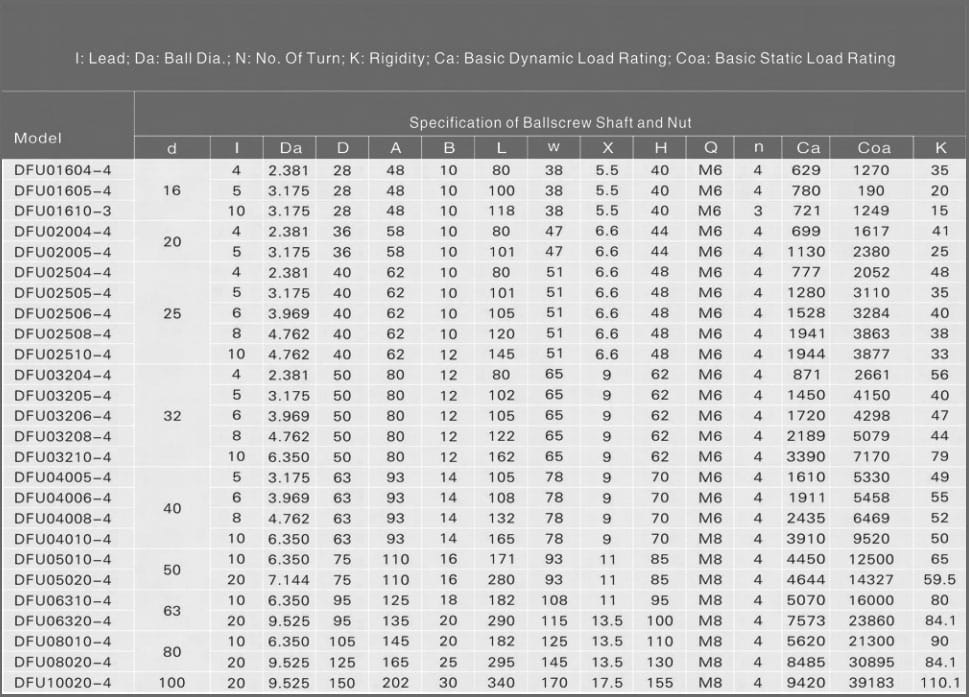

  • SPECIFICATIONS
  • PRODUCT DETAILS

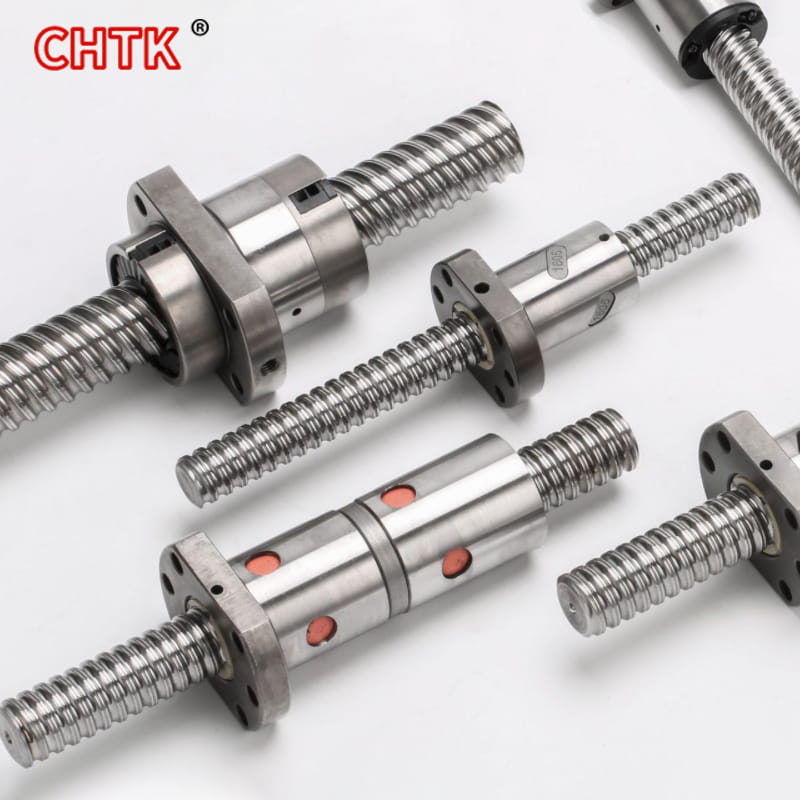

All different ball screw series, could be selected according to customer requirements, if you need left hand thread ball screw shaft and nut, you can also let us know.
  • SFU series have three different kinds of inverter
    One is round plastic inverter
    One is waist plastic inverter
    Last one is waist metal inverter
    This is the most common ball screw, and prices are very competitive
  • SFY series is the large pitch ball screw, high speed and heavy load
    SFE series is the previous model code of SFY, the main different is the nut length.

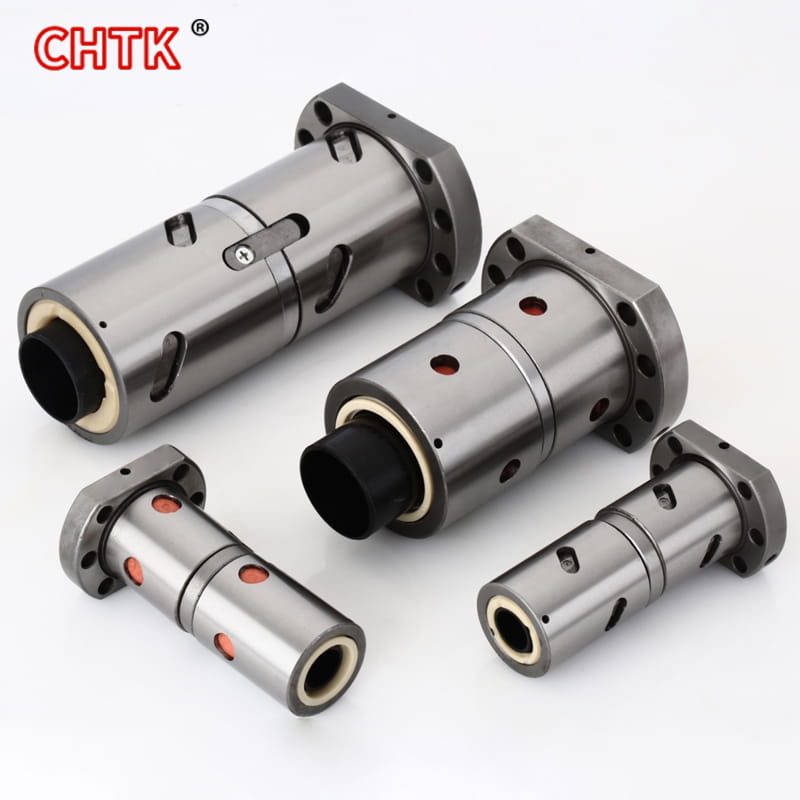

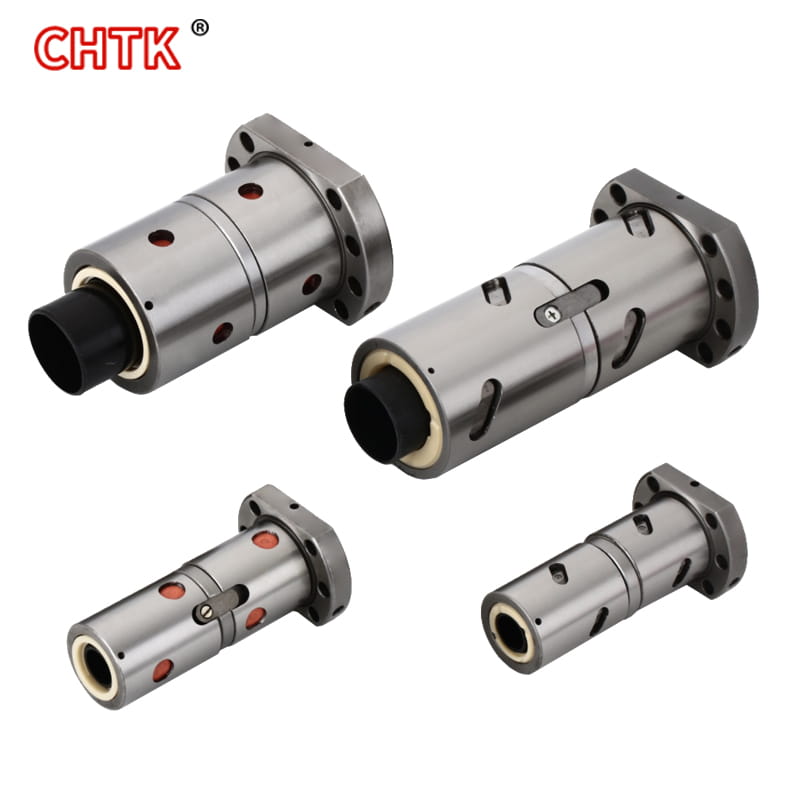

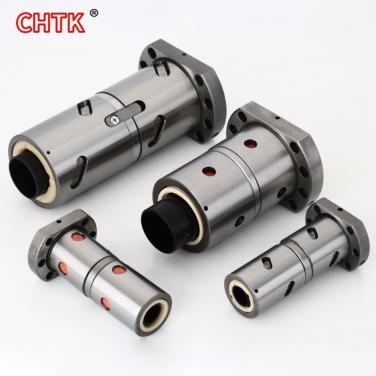

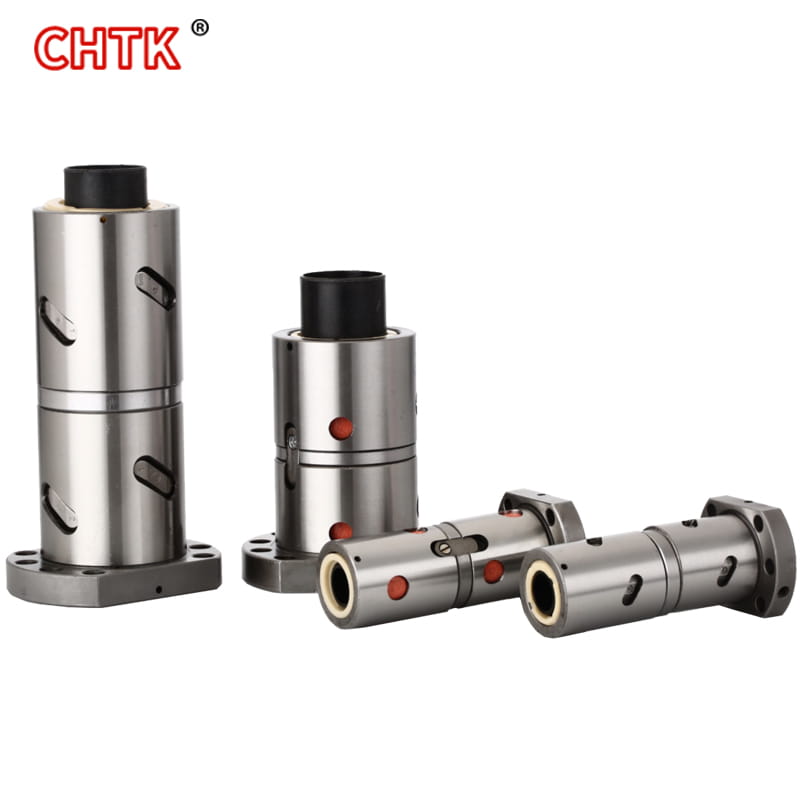

  • DFU series have three different inverter
    One is round plastic inverter
    One is waist plastic inverter
    Last one is waist metal inverter
    Heavy load
  • SFI series have two different flange nut, one is all round, the other is with double edge cut
  • SFS series ball screw is the lowest noise ballscrew nut, and high speed
Item
Material
Heat Treatment
Hardness
Ball Screw
SCM450
S55C
CF53
Induction Heating
Hardening
HRC58-62
Ball Nut
SCM415
20Cr
Carbonizing Hardening
HRC58-62
Stell ball
SUJ2

HRC60 UP
